As a necessary by product, refrigeration creates waste heat that must be exhausted to ambience, or for greater efficiency, recovered for heating purposes. Chilled water is used to cool and dehumidify air in mid- to large-size commercial, industrial, and institutional facilities.

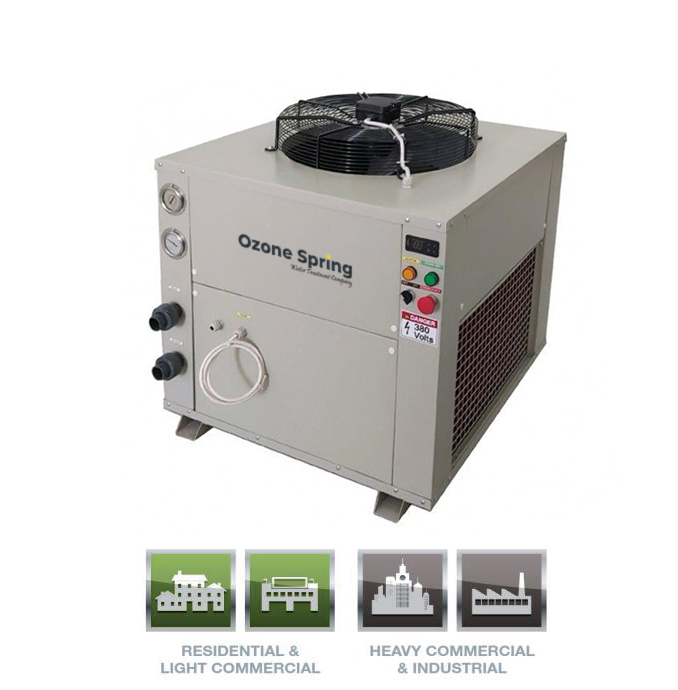

Water chillers can be water-cooled, air-cooled, or evaporative cooled. Water-cooled systems can provide efficiency and environmental impact advantages over air-cooled systems. Ozonespring Chillers are water cooled type. Industrial chillers typically come as complete, packaged, closed- loop systems, including the chiller unit, condenser, and pump station with recirculating pump, expansion valve, no-flow shutdown, internal cold water control.

The internal tank helps maintain cold water temperature and prevents temperature spikes from occurring. Closed-loop industrial chillers recirculate a clean coolant or clean water with condition additives at a constant temperature and pressure to increase the stability and reproducibility of water-cooled machines and instruments. The water flows from the chiller to the application’s point of use and back. If the water temperature differentials between inlet and outlet are high, then a large external water tank would be used to store the cold water. In this case the chilled water is not going directly from the chiller to the application, but goes to the external water tank which acts as a sort of “temperature buffer.”

The cold water tank is much larger than the internal water goes from the external tank to the application and the return hot water from the application goes back to the external tank, not to the chiller. Most industrial chillers use refrigeration as the media for cooling, but some rely on simpler techniques such as air or water flowing over coils containing the coolant to regulate temperature.

Important specifications to consider when searching for industrial chillers include the total life cycle cost, the power source, chiller cooling capacity, evaporator capacity, evaporator material, evaporator type, condenser material, condenser capacity, ambient temperature, motor fan type, noise level, internal piping materials, number of compressors, type of compressor, fluid discharge temperature, and COP (the ratio between the cooling capacity in RT to the energy consumed by the whole chiller in KW). Chiller efficiency is often specified in kilowatts per refrigeration ton (kW/RT).
