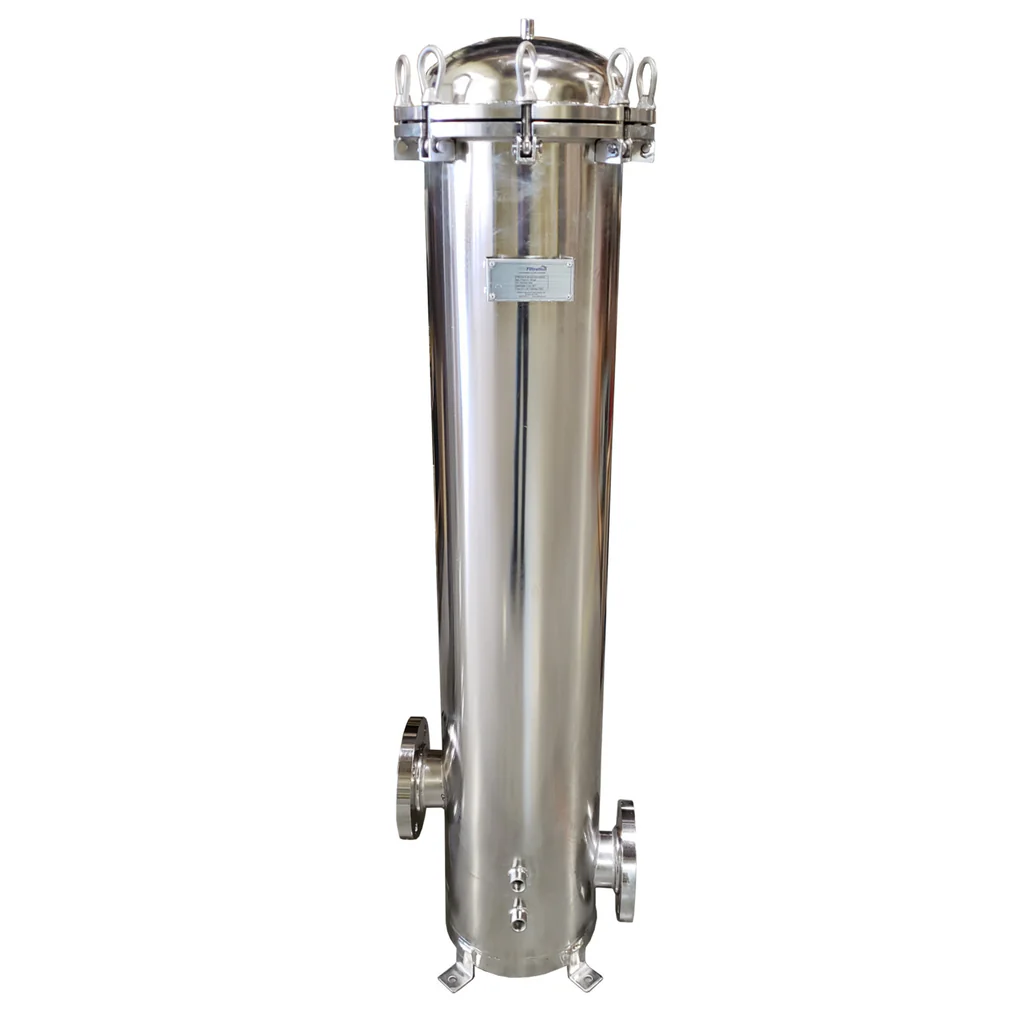

Stainless Steel Cluster Filter OS-5

  1.  Product: Stainless Steel Cluster Filter OS-5
  2.  Flange in/outlet Available
  3.  230 mm(D) x 590 mm(H)
  4.  In/Outlet:  1.5″
  5.  Filter Cartridges Size:  10’’x2.5 (5 )
  6.  Housing Material: SS304, or SS316 on request.
  7.  Working Temperature:  1~50°C


Ozone Spring Stainless Steel Cluster Filter OS-5 provide unsurpassed performance. Ozone Spring distinct design first separates compact solids before cartridge filtration to prolong filter lifespan, enhance dirt retention capability, and lower maintenance expenses. The design of filters uses the principle of thin-layer filtration through a highly porous material, which is used as cartridges made of polypropylene, polyester and activated carbon. The case is constructed from either stainless steel SS304 or SS316.

Features of Stainless Steel Cluster Filter OS-5:

  1.  Compact design which combines cyclone separator and cartridge filter.
  2.  Patented design with up-flow and tangential entry prevents air from getting trapped.
  3.  Rotational motion causes media pleats to flutter, enhancing loading performance.
  4.  Electro polished 304 stainless steel housing
  5.  Fail-Safe lid closure, rated for 150 PSI
  6.  Stainless Steel
  7.  Three sizes for greater media surface area.
  8.  Wide range of cartridge micron ratings and types of media, including carbon block.
