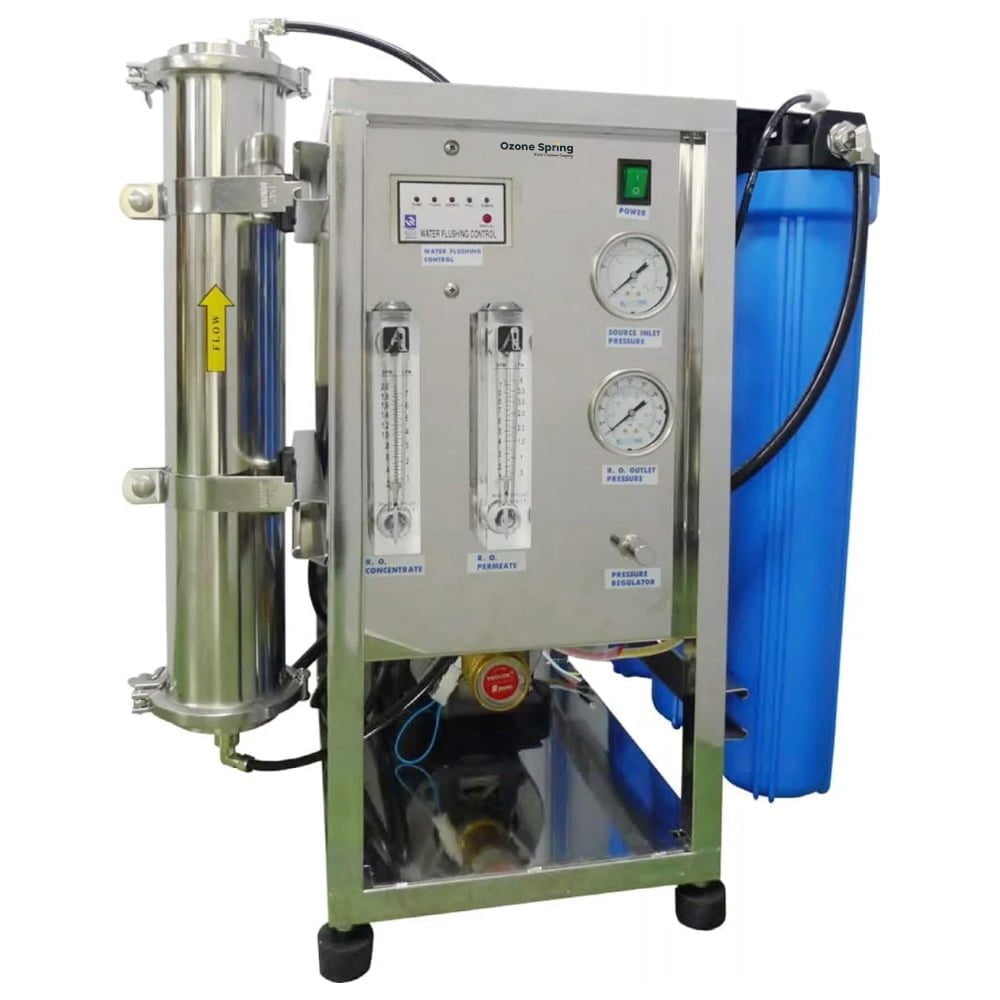

800 GPD RO Industrial Water Treatment Plant

Description

Ozone Spring 800 GPD RO Industrial Water Treatment Plant  is equipped with fully operational devices. It is Designed to produce low dissolved solids water from tap or well water, these Industrial RO systems use high efficiency reverse osmosis membranes. Ozone Spring RO systems are designed to work at pressures of 200-400 psi for higher TDS water and use reverse osmosis membranes. The RO membranes have better salt removal rates and can operate at higher pressures to compensate for reduced flow caused by increased TDS levels.

Ozone Spring 800 GPD RO Industrial Water Treatment Plant

Specfication:

1.  Production Capacity: 800Gallon Per Day
2.  Salt Rejection: 96-98%
3.  Recovery Rate: 50-60%
4.  Connection: 3/8” Feed, 1/2”Permeate, 1/2”Concentrate

Features of 800 GPD RO Industrial Water Treatment Plant

1.  Computer Controll Panel
2.  Low-Pressure Monitoring Alarm
3.  Dual TDS Monitoring
4.  Feed Flush
5.  Tank Level Input
6.  Vertical Multi-Stage Stainless Steel Booster Pump
7.  Feed Solenoid Valve with Electronic Bypass
8.  Feed Low-Pressure Switch
9.  Pump High-Pressure Switch
10.  Glycerin filled gauges mounted on panel, measuring 0-100 psi.
11.  Panel with glycerin inside measures pump discharge and concentrate pressure between 0 and 600 psi.
12.  5 Micron Sediment Filter
13.  O-Ring & Heavy-Duty Filter Housing
14.  Low Energy Membrane Elements
15.  Stainless Steel Membrane Housings-450 psi
16.  Clean-in-place (CIP) Ports
17.  High-Pressure Stainless Steel Tubing and Fittings
