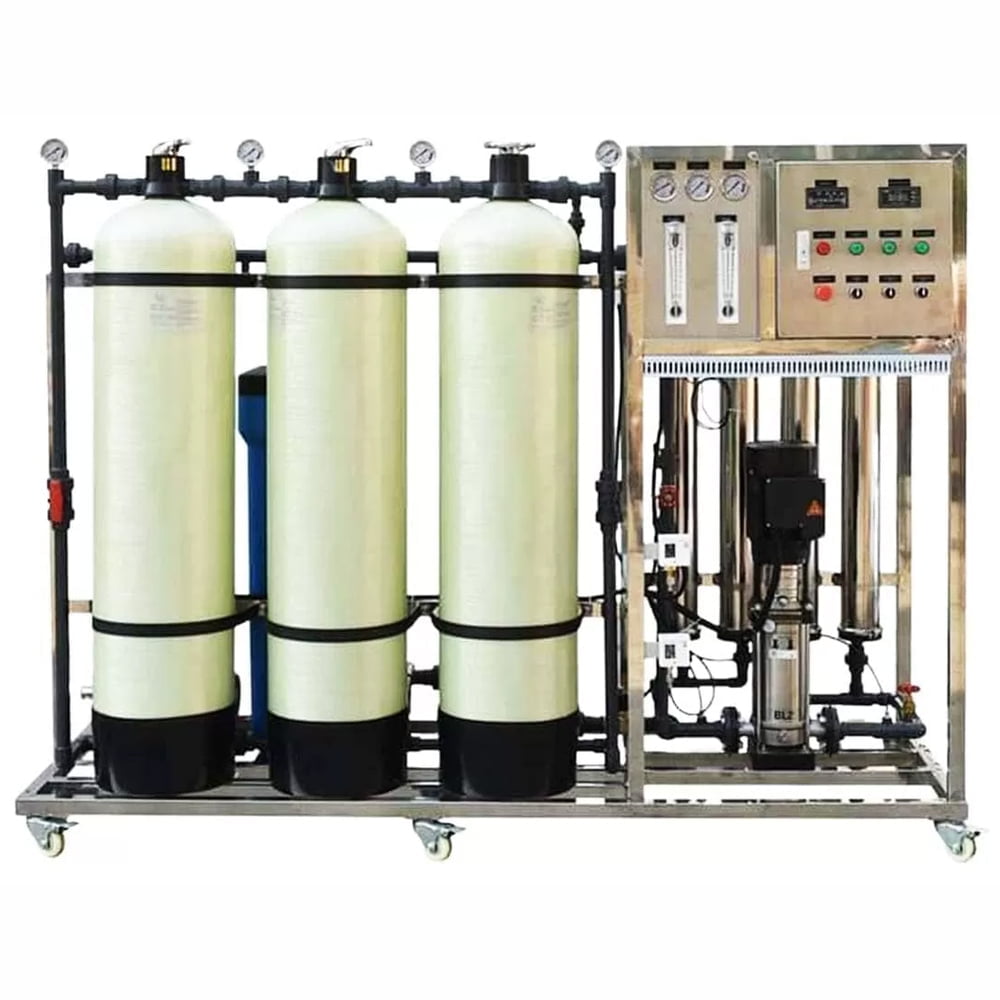

6000 GPD RO Industrial Water Treatment Plant

  1.  Product: 6000 GPD RO Industrial Water Treatment Plant
  2.  Stainless Steel Frame (Control box-Option)
  3.  20″ Prefilters x 3
  4.  Fiber Glass & Stainless Steel Membrane Vessel
  5.  4″ x 40″ Membrane x 3
  6.  Inlet Actuator & Flush Solenoid Valve
  7.  Source & Ro Gauge
  8.  Inlet & Concentration Flow Meter
  9.  Stainless Steel Vertical Pump 2.2kW (single phase motor)
  10.  Auto Flush Controller & TDS Detector
  11.  Pressure Regulator
  12.  Gate Valve
  13.  Anti-Scalent Device
  14.  Electricity Consumption: 2220W
  15.  Dimension & Weight: 80 x 50 x 145 cm (88kgs)


Ozone Spring 6000 GPD RO Industrial Water Treatment Plant comes with fully prepared devices for purifying clear water. These Industrial RO systems are engineered to create low dissolved solids water from tap or well water by utilizing high efficiency reverse osmosis membranes. Ozone Spring RO systems utilize reverse osmosis membranes and are intended to operate at pressures ranging from 200 to 400 psi for water with elevated TDS levels. The RO membranes provide increased salt removal and the elevated operating pressure compensates for reduced membrane flow caused by higher TDS levels.


Ozone Spring 6000 GPD RO Industrial Water Treatment Plant


    •  Production Capacity:  6000GPD
    •  Salt Rejection:  96-98%
    •  Recovery Rate:  50-60%


    •  Computer Controll Panel
    •  Low-Pressure Monitoring Alarm
    •  Dual TDS Monitoring
    •  Feed Flush
    •  Tank Level Input
    •  Vertical Multi-Stage Stainless Steel Booster Pump
    •  Feed Solenoid Valve with Electronic Bypass
    •  Feed Low-Pressure Switch
    •  Pump High-Pressure Switch
    •  0-100 psi, panel mounted, glycerin filled pressure measuring gauges
    •  Panel mounted glycerin filled drain pump and 0-600 psi pressure gauge
    •  5 Micron Sediment Filter
    •  O-Ring & Heavy-Duty Filter Housing
    •  Low Energy Membrane Elements
    •  Stainless Steel Membrane Housings-450 psi
    •  Clean-in-place (CIP) Ports
    •  High-Pressure Stainless Steel Tubing and Fittings
