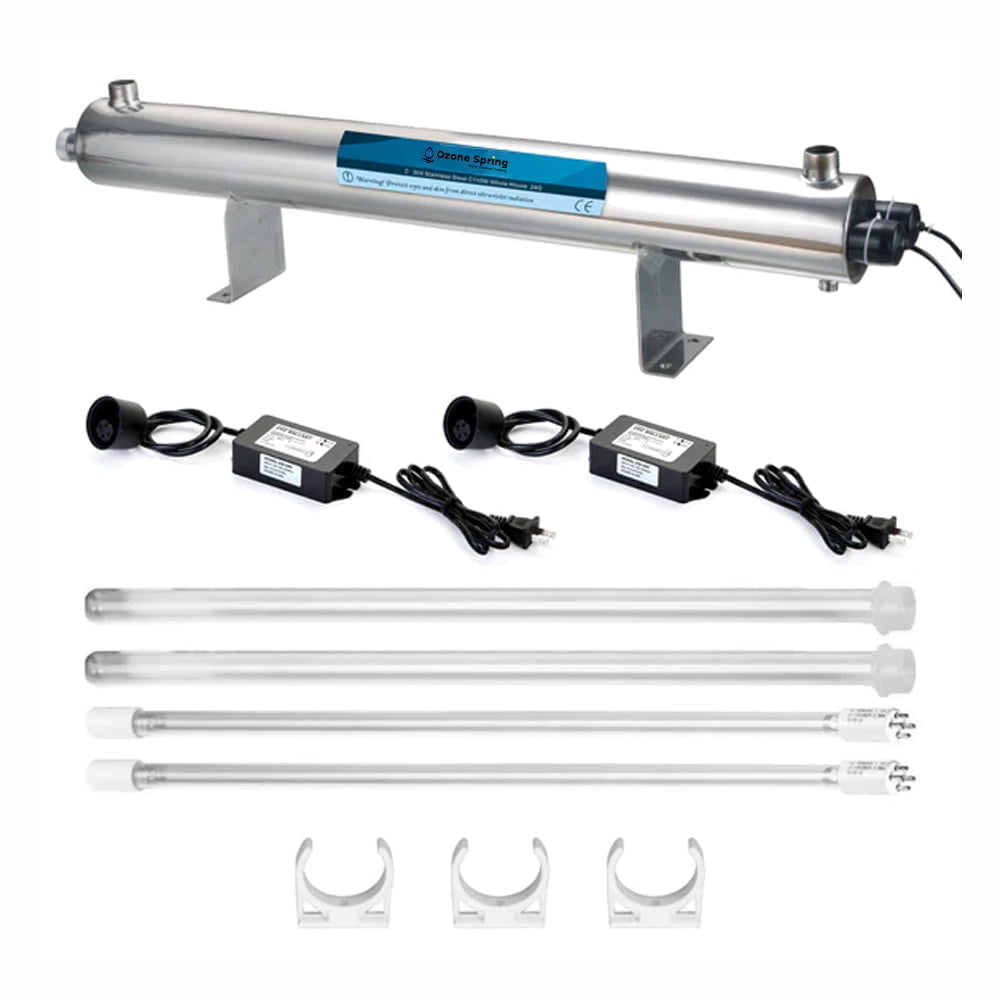

24 GPM-HTM Ultraviolet Water Sterlizer


  1. Product: 24 GPM-HTM Ultraviolet Water Sterlizer
  2. Dimension (mm) : 900(L) x 170(W) x 89(D)
  3.  Electrical Volts :  110/220V / 50/60HZ
  4.  Flow Rate :  24-GPM
  5.  In/out Port :  1”
  6.  UV Lamp (PC) :  2
  7.  Quartz Sleeve (PC) :  2
  8.  Lamp Failure Device :  Yes
  9.  Ambient Temperature :  2-50oC
  10.  Lamp Watts :  40W x 2
  11.  Chamber : SS304


Ozone Spring 24 GPM-HTM Ultraviolet Water Sterlizer System main function of the sterilizer is to destroy all traces of microorganisms, viruses, bacteria, spores, parasites and microscopic algae that can change the water for drinking in accordance with specific guidelines. Choose Ozone Spring for better results and get healthy water purification.

24 GPM-HTM Ultraviolet Water Sterlizer Features:

  1.  Heavy duty stainless steel pressure vessel
  2.  Heavy duty quartz sleeve
  3.  High Output & Heavy Glass Ultraviolet lamps for maximum efficiency
  4.  Ballast CE & lamp failure indicator and warning buzzer
  5.  Ceramic end cap of UV lamp
  6.  Energy of 253.7nm wave length / 30000mic. watt sec/cm2 at
  7.  Working pressure 125PSI
  8.  Low power consumption
  9.  9000 hours lamp life (approx. 1 year of use)
  10.  110/220V, 50HZ/60HZ
  11.  Vertical or Horizontal installation
  12.  UV light Monitor available

24 GPM-HTM Ultraviolet Water Sterlizer offer several advantages:

  1. Effective Disinfection: UV sterilization effectively kills bacteria, viruses, and other microorganisms by damaging their DNA. It’s highly effective against a wide range of pathogens, including chlorine-resistant parasites like Cryptosporidium and Giardia.
  2. Chemical-Free: Unlike chemical disinfection methods such as chlorine or ozone, UV sterilization doesn’t introduce any chemical by-products into the water. This makes it a safer and more environmentally friendly option, particularly for drinking water treatment.
  3. No Residual Taste or Odor: UV treatment leaves no taste, odor, or color in the water. It simply alters the DNA of microorganisms, rendering them harmless without affecting the water’s composition or flavor.
  4. Continuous Treatment: UV systems can provide continuous water treatment without the need for storage, contact time, or retention tanks. This makes them ideal for point-of-use or point-of-entry applications where on-demand disinfection is required.
  5. Low Maintenance: UV systems typically have low maintenance requirements compared to other water treatment methods. They don’t require frequent replacement of consumables, and the primary maintenance task involves periodic cleaning of the UV lamp and quartz sleeve to ensure optimal performance.
  6. Fast Treatment: UV sterilization works almost instantly upon contact with the microorganisms. There’s no need for a lengthy treatment process, which makes it suitable for scenarios where rapid disinfection is required.
  7. Cost-Effective: While UV systems may have higher upfront costs compared to some other disinfection methods, they often prove cost-effective in the long run due to their low operating costs and minimal maintenance requirements.
  8. Safe for Most Water Types: UV sterilization is effective across a wide range of water qualities and types. It can be used in various applications, including municipal water treatment, well water disinfection, wastewater treatment, and water reuse systems.
  9. No Harmful By-products: Unlike some chemical disinfection methods, UV treatment doesn’t produce harmful disinfection by-products (DBPs) such as trihalomethanes (THMs) or haloacetic acids (HAAs), which are associated with health risks.
  10. Versatility: UV systems come in various sizes and configurations, allowing for flexibility in installation and application. They can be integrated into existing water treatment systems or used as standalone units depending on the specific requirements of the user.
