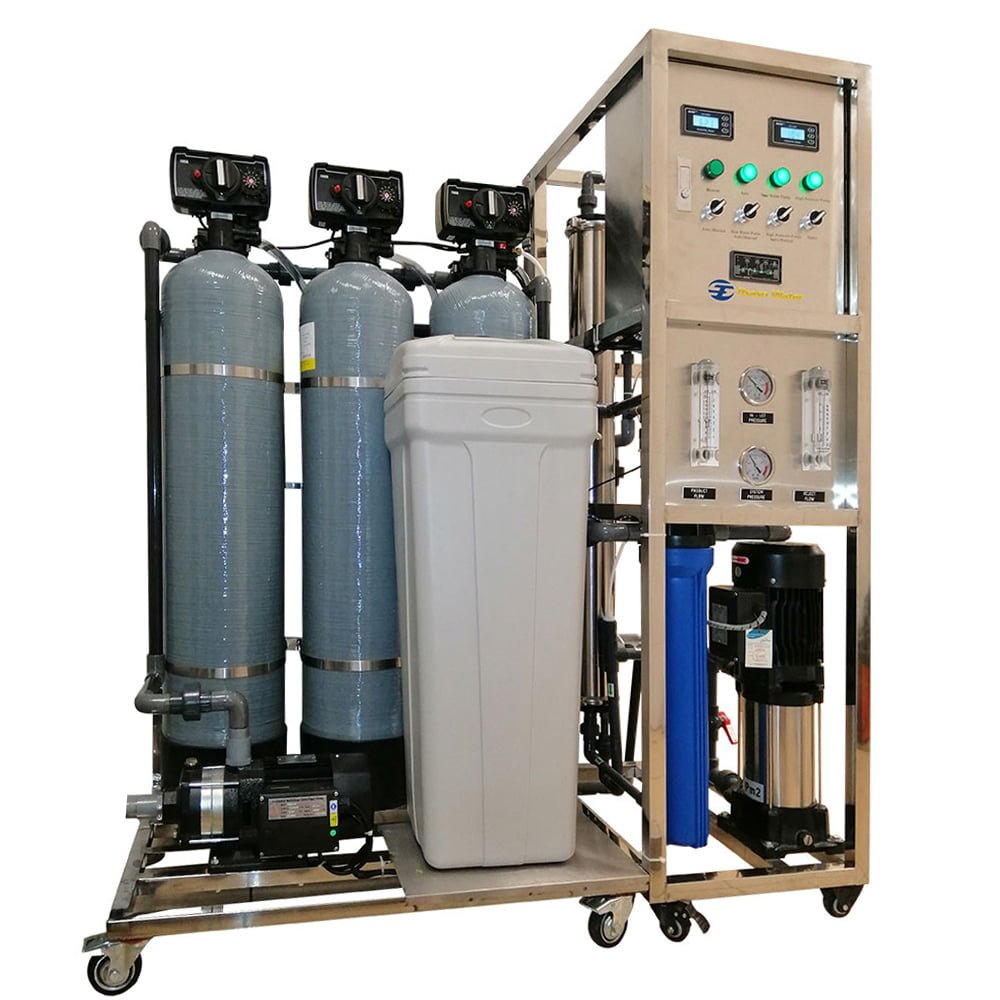

1500 GPD RO Industrial Water Treatment Plant

  1.  Product: 1500 GPD RO Industrial Water Treatment Plant
  2.  Stainless Steel Frame (Control box-Option)
  3.  20″ Prefilters x 3
  4.  S.steel or Fiber Glass Membrane vessel
  5.  4″ x 40″ Membrane
  6.  Inlet & Flush Solenoid Valve
  7.  Source & Ro Gauge
  8.  Inlet & Concentration Flow Meter
  9.  240 gph vane pump & 1hp Motor
  10. Auto Flush Control & TDS Detector
  11. Pressure Regulator
  12. Anti-scalent Device
  13. Electricity consumption: 764W
  14. Shipping Dimension & weight: 80 x 50 x 145 (65 kgs)


Ozone Spring 1500 GPD RO Industrial Water Treatment Plant include devices that are completely ready for healthy and safe water purification. Designed to produce water with low dissolved solids from tap water or well water. These Industrial Reverse Osmosis (RO) systems utilise high efficiency reverse Osmosis membranes. Ozone Spring Industrial R.O. systems are designed to work at pressures of 200-400 psi for higher TDS water and use reverse osmosis membranes. RO membranes have better salt removal and can handle higher operating pressure to offset reduced membrane flow from increased TDS levels.

Ozone Spring 1500 GPD RO Industrial Water Treatment Plant


  1.  Production Capacity:  1500 GPD
  2.  Salt Rejection:  96-98%
  3.  Recovery Rate:  50-60%
  4.  Connection : 3/4” Feed, 1/2”Permeate, 1/2”Concentrate

Features of 1500 GPD RO Industrial Water Treatment Plant:

  1.  Computer Controll Panel
  2.  Low-Pressure Monitoring Alarm
  3.  Dual TDS Monitoring
  4.  Feed Flush
  5.  Tank Level Input
  6.  Vertical Multi-Stage Stainless Steel Booster Pump
  7.  Feed Solenoid Valve with Electronic Bypass
  8.  Feed Low-Pressure Switch
  9.  Pump High-Pressure Switch
  10. Panel Mounted Glycerin Filled Gauges ranging from 0 to 100 psi are used as pre-filters.
  11.  5 Micron Sediment Filter
  12.  O-Ring & Heavy-Duty Filter Housing
  13.  Low Energy Membrane Elements
  14.  Stainless Steel Membrane Housings-450 psi
  15.  Clean-in-place (CIP) Ports
  16.  High-Pressure Stainless Steel Tubing and Fittings
